REST API of licensed provider SBZ, for submission and retrieval of myDATA documents

Version 2.3 – May 2026

Contents

Introduction
Integration overview
Authentication
API Services
InvoiceDoc description
Responses
1. Data submission
2. Data retrieval
Errors
Reference tables
Document structure, examples and tools
Versions history

Introduction
This document describes the above services and the technical specifications necessary to implement the relevant calls
of the REST API interface. Specifically, for an enterprise using an information system that uses the relevant API, the features offered are:
- Send data for the documents it issues.
- Retrieve documents already transmitted for the issuer VAT via RequestTransmittedDocs.
The following technologies are used to establish a connection with the interface.
- HTTPS – Secure HTTP
- Web service
- REST API – REST interface required for data reporting process.
- XML – eXtensible Markup Language
The interface is accessible to any invoicing program capable of sending HTTP messages and creating schema- conformant
XML, as specified in the present specification.

In addition to the relevant data, the software should be able to simultaneously and automatically send the necessary
information to identify the user through the same HTTPS call.
Integration overview
Requirements
- All XML files must be well-formed, adhere to the schema (XSD), and be encoded in UTF-8.
- Be secured using authentication described in next chapter.

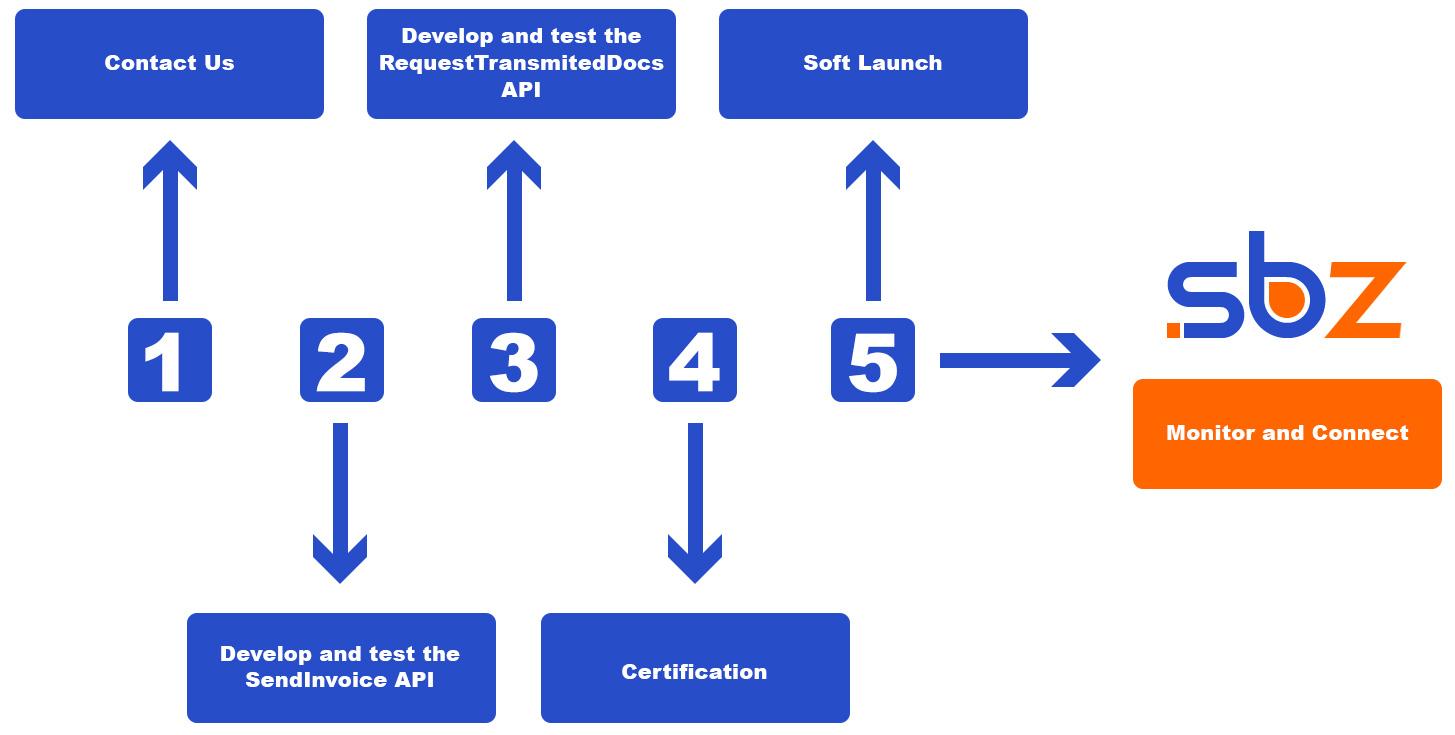

Certification Process
1. Create an account on https://api.sbz.gr/register.php and contact our technical department at support@sbzsystems.com to activate your trial account.
2. Develop and test the APIs.
3. Check and make sure you do not receive any errors. Testing for this API consists of self-tests conducted using your test account in a sandbox environment.
4. Integration testing. When you are ready to test, contact the SBZ systems Integration Specialist assigned to your account for access to the guides and testing tools.
5. When everything goes right then your setup is ready, and you will receive the production API- KEY and account details.
6. After review by SBZ staff, an electronic contract is issued.
After launch
- You must continue to adhere to our Terms and Conditions.
- You should monitor your API connection for any warning or errors.
- Report any warning or errors received in any response and how they have been resolved.

Authentication
Each call must contain the following headers in the form of pair-values, which is necessary for user identification. In case of incorrect information, the user will receive an error message. The following headers are required:

Key	Data Type	Value	Required	Description
Api-Key	String	{Api-Key}	Yes	Your sandbox or production Api-Key
Content-Type	String	application/xml; charset=utf-8	Yes*	For calls with an XML body. For `sendfile.php` use `multipart/form-data` (e.g. curl `-F`) — not application/xml.

By identifying the user through the headers, the interface will also gain access to the VAT number the user had stated when registering, so that it would not be necessary to submit it in every call.

Please note each call to a new vat number must first be authorized from our side.

API Services

Send invoice
The call has the following characteristics:
- /sendinvoice.php (POST)
- XML body with an InvoicesDoc element (type AadeBookInvoiceType). SBZ processes one document per call.
- Headers as in Authentication (Api-Key, Content-Type: application/xml; charset=utf-8).
Required SBZ elements in the XML (otherwise statusCode 101):
- API_InvoiceDetails, API_Issuer, API_Counterpart, API_Additionals
- lineUnitPrice, totalNetPriceBeforeDiscount, totalDiscountValue, measurementUnitLabel, vatCategoryPercent, docTime
- at least one of itemCode or lineCode, and one of itemDescr or lineDescription
Remarks:

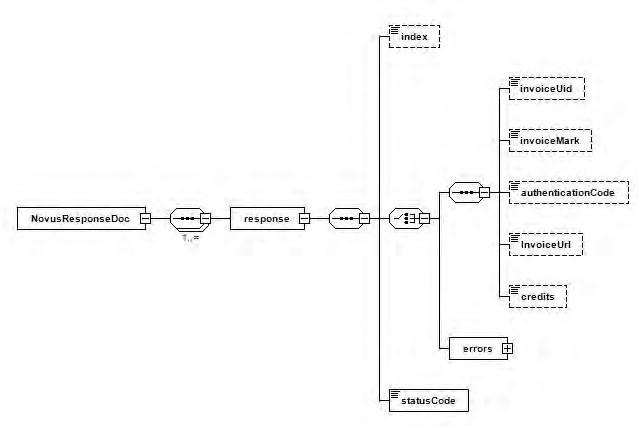

- Successful responses use SBZResponseDoc (see Data submission): invoiceUid, invoiceMark, authenticationCode, InvoiceUrl, myDATAUrl, units.
- Example errors: duplicate UID 233, insufficient units 7001, issue date older than 1 day (non-B2G) 6034.
Endpoints

Production environment

https://api.sbz.gr/sign/sendinvoice.php?action=production

Sandbox environment

https://api.sbz.gr/sign/sendinvoice.php?action=sandbox

Request transmitted documents
The call has the following characteristics:

/requesttransmitteddocs.php (GET)
Forwards the Provider RequestTransmittedDocs call to AADE and returns the AADE response body as-is (no extra SBZ enrichment).

Field	Type	Required	Description
issuerVAT	xs:long	Yes	Issuer VAT (query parameter); forwarded to AADE as `issuervat`
mark	xs:long	No	Unique Invoice Registration Number. Forwarded to AADE as `Mark`
maxMark	xs:long	No	If set, returns records with MARK less than or equal to this value

Remarks:

A valid Api-Key header is required. SBZ checks that the key exists; it does not locally compare issuerVAT to the account VAT.
Sandbox is selected only with action=sandbox (_sand_ in the key does not auto-switch this call).
AADE parameters nextPartitionKey / nextRowKey are not forwarded at present.
An invalid Api-Key returns a JSON message with statusCode 5006 (not XML).

Endpoints

Production environment

https://api.sbz.gr/sign/requesttransmitteddocs.php?issuerVAT={issuerVAT}&mark={mark}&maxMark={maxMark}&action=production

Sandbox environment

https://api.sbz.gr/sign/requesttransmitteddocs.php?issuerVAT={issuerVAT}&mark={mark}&maxMark={maxMark}&action=sandbox

Payment signature
The call has the following characteristics:

/paymentsignature.php (POST)
Main part in xml format containing the ERPpayment node, which contains a payment signature request for use with a POS card terminal.

Field	Type	Required	Description
issuerVat	xs:long	Yes	Entity VAT number
issueDate	xs:date	Yes	Invoice issue date
branch	xs:int	Yes	Branch number
invoiceType	xs:string	Yes	Type of invoice. The possible values are described in the Reference tables. The documents 8.5, 11.4, 5.1, 5.2 send to the terminal a refund transaction. The document 8.4 pre-loading transaction unless preload is set
InitialTransaction	xs:string	No	Mandatory only in case of refund
series	xs:string	Yes	Series of invoices. If no invoice series is issued, the field must have the value 0 It must not contain the character “-“
aa	xs:string	Yes	serial number of invoice. It must be unique per type of document 8.1
invoicemark	xs:long	No	Unique Registration Number
amount	xs:decimal	Yes	Payment amount
totalNetValue	xs:decimal	Yes	Total net value
totalVatAmount	xs:decimal	Yes	Total amount of VAT
totalGrossValue	xs:decimal	Yes	Total gross value
terminalid	xs:string	Yes	Payment instrument alias as defined in api.sbz.gr
tipAmount	xs:decimal	No	Tip value. If not defined enter 0
instalments	xs:int	No	Number of installments. If not defined, enter 0
preload	xs:int	No	1: Pre-load transaction, 2: Check pre-loaded Deploy the line only when needed.
PaymentType	xs:int	No	0: Card payment, 1: IRIS. If not defined, is 0

Response

Field	Type	Description

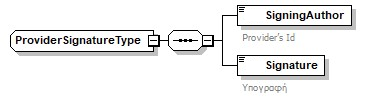

SigningAuthor	xs:long	Electronic invoicing provider’s code
Signature	xs:date	Payment Signature of the Electronic Document Issuance Service Provider
Uid	xs:int	Invoice identifier
Timestamp	xs:int	Time format Y-m-d\TH:i:s
statusCode	xs:string	Result of call
Comments	xs:string	Comments
pos_transactionId	xs:string	Terminal transaction ID
pos_answer	xs:string	Returned values are preloaded, success, failed
pos_transactionText	xs:string	It is not returned by all terminals and is intended for informational purposes only. An additional unique number from a terminal, if exists.
pos_TerminalID	xs:string	Terminal ID
pos_PaymentType	xs:int	0: Card payment, 1: IRIS payment

Remarks:

The differentiation between simultaneous and heterochronous transactions lies in the use or not of SendPayments
For heterochronous transactions SendPayments is used after first calling PaymentSignature
For simultaneous transactions SendInvoice is used after first calling PaymentSignature
The issuer VAT is sent via the issuerVat field inside ERPpayment

Endpoints

Production environment

https://api.sbz.gr/sign/paymentsignature.php?action=production

Sandbox environment

https://api.sbz.gr/sign/paymentsignature.php?action=sandbox

Send payments
The call is made when we need to issue a receipt or POS return receipt. It is sent to myDATA with SendPaymentsMethod and receives an invoiceMark which is returned on a successful call. A call has the following characteristics:

/sendpayments.php (POST)
Headers as referred to in paragraph 3
XML body is PaymentMethodsDoc with one or more paymentMethods / PaymentMethodType elements. Fields are described below (diagram):

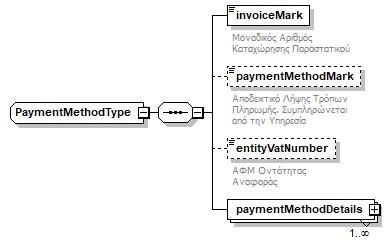

Request (PaymentMethodsDoc / PaymentMethodType)

Field	Type	Required	Description
invoiceMark	xs:long	Yes	Unique Invoice Registration Number (MARK)
paymentMethodMark	xs:long	No	Unique Payment Method Registration Number (filled by the service)
entityVatNumber	xs:string	No	Optional AADE schema field. SBZ identifies the issuer from the `Api-Key` (not required for the call).
paymentMethodDetails	PaymentMethodDetailType	Yes	Payment methods (at least one POS type per document)

Remarks

1. The field paymentMethodMark is composed by the service
2. The issuer is identified from the Api-Key; optional AADE entityVatNumber is not used by SBZ for authentication.

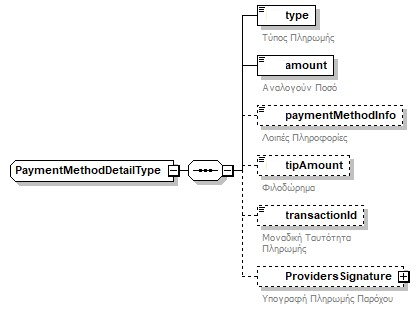

3. The PaymentMethodDetailType object is discussed in detail in paragraph 5.2
4. When using the method, at least one PaymentMethodDetailType object per document must be of type POS
5. The total amount per PaymentMethodDetailType object must be equal to the totalGrossValue of the document to which the invoiceMark refers.

Endpoints

Production environment

https://api.sbz.gr/sign/sendpayments.php?action=production

Sandbox environment

https://api.sbz.gr/sign/sendpayments.php?action=sandbox

Cancel delivery note
The call is made when we need to cancel a delivery note. It is sent to myDATA with the CancelDeliveryNote method and receives a cancellationMark, which it returns upon a successful call. It has the following characteristics:
- /canceldeliverynote.php (POST)
- Headers as referred to in paragraph 3
- Fields are defined as parameters, for example https://api.sbz.gr/sign/canceldeliverynote.php?action=sandbox&entityVatNumber=999999999&mark=40000000000000
Field Type Required Description

mark xs:long Yes Unique registration number of the document to be canceled

entityVatNumber xs:string Yes Entity VAT number

Response (SBZResponseDoc / response)

Field Type Description

cancellationMark xs:long Unique Cancellation Number (on success)

statusCode xs:string Status code (e.g. Success)

message xs:string Success or error message

Remarks:
- No XML body is required (empty POST body). Fields are query parameters only.
- The Api-Key must match the same VAT as entityVatNumber.
- The MARK must already exist for that account; otherwise statusCode 301.
- On success the cancellation gets its own mark (cancellationMark). Other example codes: 5006 (key), ValidationError (missing params), 101 / 7002 / 7003.
- Only document type 9.3 can be canceled with CancelDeliveryNote (AADE rule).
Endpoints

Production environment

https://api.sbz.gr/sign/canceldeliverynote.php?action=production

Sandbox environment

https://api.sbz.gr/sign/canceldeliverynote.php?action=sandbox

Send file
The call has the following characteristics:

/sendfile.php (POST)
Headers as referred to in paragraph 3
Body (multipart/form-data)

Field	Type	Required	Description
issuerVat	xs:long	Yes	Entity VAT number
invoiceMark	xs:string	Yes	Document Mark
file	xs:string	Yes	PDF or JPG file (max 300 KB)

Example

curl -X POST \
  -H "Api-Key: your_key" \
  -F "issuerVat=999999999" \
  -F "invoiceMark=400001000000000" \
  -F "file=@invoice.pdf" \
  "https://api.sbz.gr/sign/sendfile.php?action=sandbox"

curl -X POST \

-H "Api-Key: your_key" \

-F "issuerVat=999999999" \

-F "invoiceMark=400001000000000" \

-F "file=@invoice.pdf" \

"https://api.sbz.gr/sign/sendfile.php?action=sandbox"

Endpoints

Production environment

https://api.sbz.gr/sign/sendfile.php?action=production

Sandbox environment

https://api.sbz.gr/sign/sendfile.php?action=sandbox

Response (SBZResponseDoc / response) on success includes among others: invoiceMark, vat, fileName, filePath, unitsDeducted, remainingUnits, statusCode Success.
Remarks

issuerVat must match the VAT of the Api-Key.
The document mark must already exist in the system before uploading.
PDF and JPG/JPEG are allowed (max 300 KB).
Each upload costs units: 1 unit per 20 KB (e.g. 100 KB = 5 units).
Re-upload for the same MARK/environment is not allowed (statusCode 102). Other examples: 101 (validation), 404 (not found), 405 (not POST), 5006 (key), 7002 (storage/DB).

InvoiceDoc description
This section describes in detail the contents of an invoice (type AadeBookInvoiceType). The structure of the element is as follows:

Field	Type	Required	Description	Valid values
uid	xs:string	No	Invoice identifier	Length = 40 Filled in only by Provider
mark	xs:long	No	Unique Invoice Registration Number	Filled in only by Provider. Unique Invoice Registration Number
cancelledByMark	xs:long	No	Unique Invoice Cancelation Number	Filled in only by Provider
authenticationCode	xs:string	No	Authentication Code	Filled in only by Provider
transmissionFailure	xs:byte	No	Provider communication failure or ERP data transmission failure	Allowed value: 1. Details in the Reference tables
issuer	PartyType	No	Invoice issuer
counterpart	PartyType	No	Invoice counterpart
invoiceHeader	InvoiceHeaderType	Yes	Invoice header
paymentMethods	PaymentMethodDetailType	No	Payment Methods

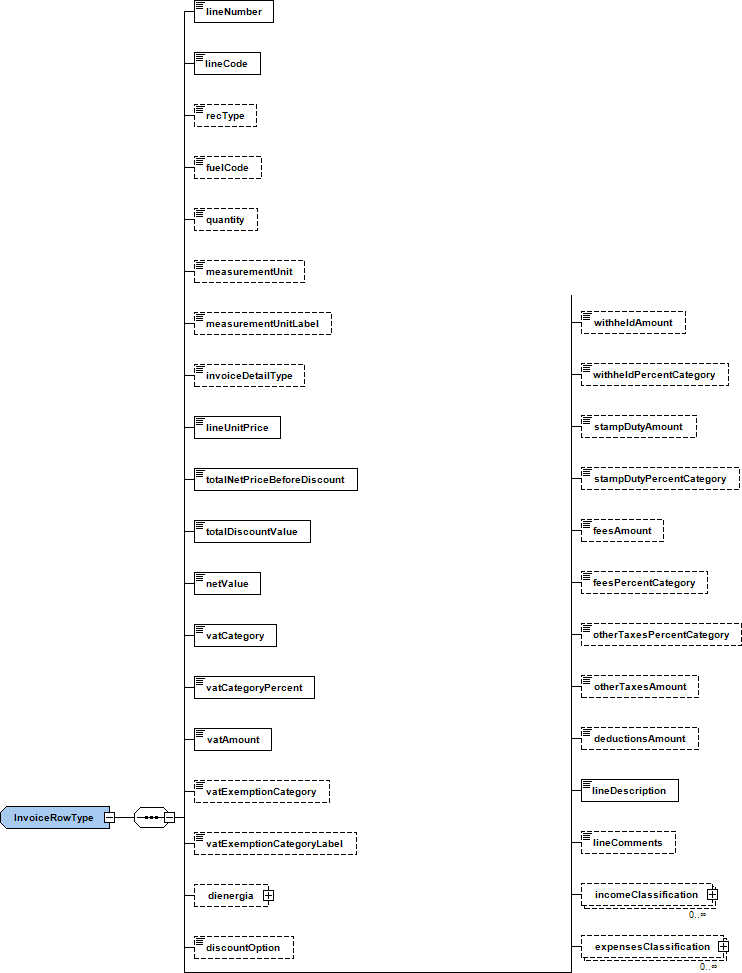

invoiceDetails	InvoiceRowType	Yes	Invoice lines

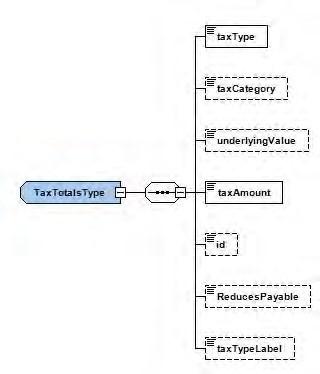

taxesTotals	TaxesType	No	Total taxes	Contains all taxes except VAT. If user uses this element, taxes will not exist in invoiceDetails
invoiceSummary	InvoiceSummaryType	Yes	Invoide Summary
API_InvoiceDetails	API_InvoiceDetailsType	Yes	Document details

Remarks

Complex types PartyType, PaymentMethodDetailType, InvoiceHeaderType, InvoiceRowType, TaxTotalsType, InvoiceSummaryType and API_InvoiceDetailsType are described later in this section.
The transmissionFailure field indicates a communication failure (optional, xs:byte). Allowed value: 1 — Failure of communication between the entity and the provider during invoice issuance/transmission. Details in the Reference tables.

Entity details – Address
The issuer and the counterpart are elements of type PartyType.

Field	Type	Required	Description	Valid values
vatNumber	xs:string	Yes	VAT number	Any valid VAT number
Country	xs:string	Yes	Country code	Country codes (ISO 3166)
Branch	xs:int	Yes	Branch number	Min value = 0 If the branch is headquarters or doesn’t exist, the branch field must have a value of 0.
Name	xs:string	No	Name
Address	AddressType	No	Address
documentIdNo	xs:string	No	Official document number	Max.100 chars Valid only in the case of a tax free document (specialInvoiceCategory = 4)
supplyAccountNo	xs:string	No	Electricity Supply Number	Max.100 chars Valid only in the case of a fuel documents

Remarks

For the issuer fields name and address are valid only in case the entity is not from Greece. For the counterpart field name must not be submitted if the entity is from Greece.
The country code is two characters and comes from the respective country list of countries as described in ISO 3166.
In case the issuer’s establishment is the headquarters or does not exist, the branch field must have the value 0
For the publisher, the Name and Address details are not accepted in cases involving an entity within Greece (GR). For the receiver, the element Names are not accepted in the event that it concerns an entity within of Greece (GR)
The official document number is only allowed in the case of transmission of documents belonging to the Special Category of Tax free Document (the field of the document header specialInvoiceCategory has the value 4), and can be any official identification document (eg number passport) of the recipient of the document.
The Electricity Supply number is only allowed in the case of transmission of fuel documents (the field of the document heading fuelInvoice has the value true – only accepted for transmission by providers) and is information of the recipient of the document.

Address

The address of the issuer and the counterpart are elements of type AddressType.

Field	Type	Required	Description
street	xs:string	No	Street
number	xs:string	No	Number
postalCode	xs:string	Yes	Postal code
city	xs:string	Yes	City

Payment Method
Payment method is an element of type PaymentMethodDetailType and its structure is described below:

Field	Type	Required	Description	Valid values
type	xs:int	Yes	Payment method	Min value = 1 Max value = 8. Possible values are described in the Reference tables (Payment methods)
Amount	xs:decimal	Yes	Amount	Min value = 0 Decimal digits = 2 Field amount may refer to fraction of the document’s total value
paymentMethodInfo	xs:string	No	Information	Field paymentMethodInfo contains additional information for the specified type
transactionId	xs:string	Όχι	Transaction number from POS terminal	Passed on in the case of payments with type = 7
tid	xs:string	Όχι	POS terminal TID	Passed on in the case of payments with type = 7

Remarks

The values of the type field are described in the corresponding Reference tables
The amount field may correspond to part of the document’s total value
The paymentMethodInfo (Info) field may contain additional information for the specific type (e.g. bank account number)
The ProvidersSignature field is of type ProviderSignatureType (described below) and is transmitted for payments with type = 7 when submission goes through the provider channel

Provider’s Payment Signature
The ProvidersSignature field is an element of type ProviderSignatureType and its structure is described below:

Field Type Required Description

SigningAuthor xs:string Yes Number of approval of the Electronic Invoicing Provider

Signature xs:string Yes Sign

Payment flow

Call to paymentsignature.php with an XML request:

<ERPpayment>
    <issuerVat>999999999</issuerVat>
    <issueDate>2025-03-07</issueDate>
    <branch>0</branch>
    <invoiceType>11.1</invoiceType>
    <series>Δ</series>
    <aa>3468</aa>
    <amount>165</amount>
    <totalNetValue>133.07</totalNetValue>
    <totalVatAmount>31.93</totalVatAmount>
    <totalGrossValue>165</totalGrossValue>
    <tipAmount>0</tipAmount>
    <terminalid>CARD3</terminalid>
</ERPpayment>

</ERPpayment>

The terminalid is associated with the terminal TID in the api.sbz.gr admin panel, under settings, payment terminals.

The API communicates with the POS and waits for a response

When the transaction completes, XML of this type is returned:

<ERPpayment>
        <response>
            <SigningAuthor>013</SigningAuthor>
<Signature>30450220023dbd64e2244c3fafc4e688d37de63bxxxxxxxxxxxxxxxxxxxxxxxxxxxx</Signature>
            <Uid>F4AD151F318B012XXXXXXXXXXXXXXXXXX</Uid>
            <Timestamp>20260509095253</Timestamp>
            <statusCode>Signature is valid</statusCode>
<Comments>803093207-2026-05-09-0-11.1-A-10159|0|F4AD151F318B012E6CF…..</Comments>
            <pos_transactionId>tr2;109;000222;000012;481070</pos_transactionId>
            <pos_answer>success</pos_answer>
            <pos_transactionText>34861241</pos_transactionText>
            <pos_TerminalID>74900178</pos_TerminalID>
            <pos_PaymentType>0</pos_PaymentType>
        </response>
</ERPpayment>

<Signature>30450220023dbd64e2244c3fafc4e688d37de63bxxxxxxxxxxxxxxxxxxxxxxxxxxxx</Signature>

<Uid>F4AD151F318B012XXXXXXXXXXXXXXXXXX</Uid>

<statusCode>Signature is valid</statusCode>

<pos_transactionId>tr2;109;000222;000012;481070</pos_transactionId>

<pos_answer>success</pos_answer>

<pos_transactionText>34861241</pos_transactionText>

<pos_TerminalID>74900178</pos_TerminalID>

<pos_PaymentType>0</pos_PaymentType>

</response>

</ERPpayment>

Embed into sendinvoice.php and submit

<invoice>
...
    <paymentMethods>
      <paymentMethodDetails>
        <type>3</type>
        <amount>0</amount>
      </paymentMethodDetails>
      <paymentMethodDetails>
        <type>7</type>
        <amount>15.88</amount>
        <tipAmount>0</tipAmount>
        <transactionId>tr2;109;000222;000012;481070</transactionId>
        <tid>74111111</tid>
        <ProvidersSignature>
          <SigningAuthor>013</SigningAuthor>          <Signature>30450220023dbd64e2244c3fafc20c39f52e57b64f676cfc2185733dxxxxxxxxxxxxxxxxxxxxxxxxx</Signature>
        </ProvidersSignature>
      </paymentMethodDetails>
    </paymentMethods>
    <invoiceDetails>
    ...
    </invoiceDetails>
    <API_InvoiceDetails>
    ...
    </API_InvoiceDetails>
    <invoiceSummary>
    ...
    </invoiceSummary>
</invoice>

...

</paymentMethodDetails>

<SigningAuthor>013</SigningAuthor> <Signature>30450220023dbd64e2244c3fafc20c39f52e57b64f676cfc2185733dxxxxxxxxxxxxxxxxxxxxxxxxx</Signature>

</ProvidersSignature>

</paymentMethodDetails>

</paymentMethods>

...

</invoiceDetails>

<API_InvoiceDetails>

...

</API_InvoiceDetails>

...

</invoiceSummary>

</invoice>

Document header – Other General Delivery Details

Field	Type	Required	Description	Valid values
series	xs:string	Yes	Invoice series	In case of non-issuance of series of an invoice, the series field must have a value of 0 It must not contain the character “-“
aa	xs:string	Yes	Invoice’s serial number	Maximum digits = 5
issueDate	xs:date	Yes	Invoice’s issue date
invoiceType	xs:string	Yes	Invoice type	The possible values are described in the Reference tables
vatPaymentSuspension	xs:boolean	No	VAT payment suspension
currency	xs:string	No	Currency	Currency code (ISO4217)
exchangeRate	xs:decimal	No	Exchange rate	Min value = 0 Decimal digits = 5 The currency exchange rate against euro. It should be completed only when the currency is not EUR.
correlatedInvoices	xs:long	No	Correlated invoices	The element is a list of strings containing the MARK of the associated invoices identifiers
correlatedInvoicesLabel	xs:string	No	Correlated invoices Names	Required only when using correlatedInvoices. The element is a text field containing the Friendly Name of the associated invoices
selfPricing	xs:boolean	No	Self-billing indication	Specifies if it is self-billing invoice
dispatchDate	xs:date	No	Dispatch date
dispatchTime	xs:time	No	Dispatch time
vehicleNumber	xs:string	No	Vehicle number
movePurpose	xs:int	No	Purpose of movement	Min value = 1 Max value = 20 Values described in the Reference tables
movePurposeLabel	xs:string	No	Purpose of Movement Description
fuelInvoice	xs:boolean	No	Fuel document (indication)
specialInvoiceCategory	xs:int	No	Special Category of Document	Min value = 1 Max value = 13. Values in the Reference tables (Special invoice category)
isDeliveryNote	xs:boolean	No	Delivery note indicator
multipleConnectedMarks		No	Multiple connected Unique Invoice Registration Numbers
tableAA		Yes	Table ID	Acceptable only for document type 8.6 – Maximum permissible length 50
totalCancelDeliveryOrders	xs:boolean	No	Total Cancellation Indicator of Delivery Notes	Acceptable only for document type 8.6

Remarks

The exchangeRate field is the exchange rate of the currency in relation to the euro. Must be filled in only when the currency does not have a EUR value.
The currency code is derived from the corresponding list according to the ISO4217 standard.
The correlatedInvoices element is a list and contains the MARKs of the correlated documents
In the case of no document series being issued, the series field must have the value 0
The selfPricing field defines whether it is a Self-Pricing Invoice
The possible values of the movePurpose and invoiceType fields are described in detail in the corresponding Reference tables
The field fuelInvoice defines whether it is a document of sale of liquid fuel and is allowed to be sent only in the case of providers.
The possible values of the specialInvoiceCategory field are described in detail in the corresponding Reference table
The possible values of the invoiceVariationType field are described in detail in the corresponding Reference table. This field is not allowed for transmission via the provider channel. Also details on how to use them from an operational point of view are described in the relevant operational document.
The otherCorrelatedEntities field (Other correlated entities) is a list of type EntityType
The structure of the otherCorrelatedEntities type is described below
The structure of the otherDeliveryNoteHeader type is described below
The isDeliveryNote field indicates whether the document is also a delivery note (e.g. document type 1.1 – Sales Invoice; if isDeliveryNote = true, it is also a delivery/dispatch note and additional delivery details must be sent)
The otherMovePurposeTitle field is filled when movePurpose = 19 (Other movements) and sets the title of the other movement
The thirdPartyCollection field indicates whether the business using Payment Means as a payment-services user collects on behalf of third parties (document type 8.4 – POS Collection Receipt) or returns transaction amounts on behalf of third parties (document type 8.5 – POS Refund Receipt)

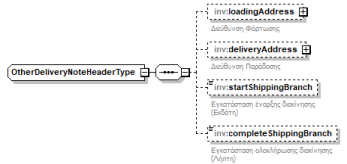

Other General Delivery Details

Field	Type	Required	Description	Valid values
loadingAddress	AddressType	Yes	Loading Address	It is completed for documents that are delivery notes (e.g., 9.3) or invoices and delivery notes (isDeliveryNote = true)
deliveryAddress	AddressType	Yes	Delivery Address	It is completed for documents that are delivery notes (e.g., 9.3) or invoices and delivery notes (isDeliveryNote = true)
startShippingBranch	xs:int	No	Dispatching Start Location (Issuer)	It is completed for documents that are delivery notes (e.g., 9.3) or invoices and delivery notes (isDeliveryNote = true)
completeShippingBranch	xs:int	No	Receiving End Location (Recipient)	It is completed for documents that are delivery notes (e.g., 9.3) or invoices and delivery notes (isDeliveryNote = true)

Remarks:

The field loadingAddress is of type AddressType, which type is elaborated in a previous corresponding paragraph (Entity Address)
The field deliveryAddress is of type AddressType, which type is elaborated in a previous corresponding paragraph (Entity Address)
The field startShippingBranch specifies the branch from which the circulation begins, in case the circulation starts from a branch (installation) of the issuer of the document, which is different from the issuer’s branch for the delivery note
The field completeShippingBranch specifies the branch where the circulation will be completed, in case the circulation will be completed at a branch (installation) of the recipient of the document, which is different from the recipient’s branch for the delivery note

Document details – Activity Undertaking Declaration

Field	Type	Required	Description	Valid values
lineNumber	xs:int	Yes	Line number	Min value = 1
lineCode	xs:string	No	Item code
recType	xs:int	No	Line Type	Min value = 1 Max value = 7. Values in the Reference tables (Invoice detail type / line type)
fuelCode	FuelCodes	No	Fuel Code	Fuel Codes list Values described in the Reference tables
quantity	xs:decimal	No	Quantity	Min value = 0 Default = 1
lineQuantity	xs:decimal	No	Quantity only for use by the provider API if the quantity does not exist	Min value = 0 Default = 1
classificationIdentifier	xs:string	For B2G only No	CPV code
measurementUnit	xs:int	No	Unit of quantity	Min value = 1 Max value = 7. Values in the Reference tables
measurementUnitLabel	xs:string	No		Required only when measurementUnit exists
invoiceDetailType	xs:int	No	Self-billing remark	1,2 Values described in the Reference tables
lineUnitPrice	xs:decimal	Yes	The unit price
totalNetPriceBeforeDiscount	xs:decimal	Yes	Total price of all (units x quantity)
totalDiscountValue	xs:decimal	Yes	Total Discount Value	Min value = 0
netValue	xs:decimal	Yes	Net value	Min value = 0 Decimal digits = 2
vatCategory	xs:int	Yes	VAT category	Min = 1, Max = 8 Values described in the Reference tables For cases where VAT is not applied, the vatCategory field will have the value of 8
vatCategoryPercent	xs:decimal	Yes	VAT category Description (ex. 24.00)
vatAmount	xs:decimal	Yes	VAT amount	Min value = 0 Decimal digits = 2
vatExemptionCategory	xs:int	No	VAT exemption category	Min value = 1 Max value = 31 Values described in the Reference tables Required if the vatCategory indicates a 0% VAT rate
dienergia	ShipType	No	Article 27 of POL 1177/2018
discountOption	xs:boolean	No	Discount option	False / True
withheldAmount	xs:decimal	No	Withholding tax amount	Min value = 0 Decimal digits = 2 Field is filled in when the corresponding tax exists (even if it is percentage)
withheldPercentCategory	xs:int	No	Withholding tax rate category	Min value = 1 Max value = 12 Values described in the Reference tables
stampDutyAmount	xs: decimal	No	Amount of digital transaction fees	Min value = 0 Decimal digits = 2
stampDutyPercentCategory	xs:int	No	Digital Transaction Fee Category	1, 2, 3 Values described in the Reference tables
feesAmount	xs:decimal	No	Fees amount	Min value = 0 Decimal digits = 2 Field are filled in when the corresponding tax exists (even if it is percentage)
feesPercentCategory	xs:int	No	Fees rate category	Min value = 1 Max value = 22 Values described in the Reference tables
otherTaxesPercentCategory	xs:int	No	Other taxes rate category	Min value = 1 Max value = 30 Values described in the Reference tables
otherTaxesAmount	xs:decimal	No	Other taxes amount	Min value = 0 Decimal digits = 2 Field are filled in when the corresponding tax exists (even if it is percentage)
deductionsAmount	xs:decimal	No	Deductions amount	Min value = 0 Decimal digits = 2
lineDescription	xs:string
lineComments	xs:string	No	Line comments	Filled in by user and used for information purposes only
incomeClassification	IncomeClassificationType	No	Income classification
expensesClassification	ExpensesClassificationType	No	Expenses classification
itemDescr	xs:string	No	Item description	Max 300 chars Acceptable only in the case of documents of the special tax free category

Remarks

The possible values for the fields measurementUnit, invoiceDetailType, vatCategory, vatExemptionCategory, withheldPercentCategory, stampDutyPercentCategory, feesPercentCategory and otherTaxesPercentCategory are detailed in the respective Reference tables
The field vatExemptionCategory is necessary in the event that vatCategory indicates a 0% VAT rate category
For cases of accounting entries where VAT is not applied, the vatCategory field will have the value 8
Line comments are filled in by the user and are used for information purposes to the service
1. In the case of sending lines with recType = 2 (VAT fee line) and/or recType = 3 (Other Taxes line with VAT), it will be allowed at the same time, if desired, to send withholding/fees /other taxes/stamp/deductions and at document level and not necessarily per document summary line. In the cases of these lines, the amounts corresponding to VAT fees (recType = 2) or other taxes (recType =3 respectively, they will be sent to the field of the net value of the line (netValue), while the corresponding fields fee amount (feesAmount) or amount of other taxes (otherTaxesAmount) will not be filled. Also, other types of taxes/fees/retentions/stamps are not allowed to be sent on these lines (eg on a line with recType = 2 other taxes/deductions/withholding/stamp are not allowed on that line).
2. Sending with recType = 7 (negative sign of values) is allowed only in the case of transmission of documents 17.3, 17.4, 17.5 and 17.6 and in this way it is indicated that the line values are negative (in the respective value fields the values are written in their absolute/positive values). It is noted that in the sums of the values in the Document Summary section (InvoiceSummaryType) the sums of the absolute values of the corresponding values of the lines will be transmitted regardless of whether there are lines that bear or not the indication recType = 7.
The possible values for the fuelCode field are described in detail in the corresponding Reference table. It is allowed to send it only in the case of providers and if it is a document Fuel (invoiceHeaderType.fuelInvoice = true). The value 999 is used in the event that in a document other than fuel there is the need for invoicing and other charges. Only one line with this code is allowed per document and the net value of that line should be less than or equal to the sum of the net value of the remaining fuel codes of the document.

Activity Undertaking Declaration

Activity undertaking declaration is an element of type ShipType:

Field	Type	Required	Description
applicationId	xs:string	Yes	Activity Undertaking Declaration Number
applicationDate	xs:date	Yes	Application date
doy	xs:string	No	Tax Return Filing DOY
shipID	xs:string	Yes	Ship details

Taxes totals
Element TaxTotalsType which contains the total taxes has the following structure:

Field	Type	Required	Description	Valid Values
taxType	xs:byte	Yes	Type of tax	1 = Withheld taxes 2 = Fees 3 = Other taxes 4 = Digital transaction fee 5 = Deductions
taxCategory	xs:byte	Yes	Tax category	See tables 8.4 – 8.8 of appendix
underlyingValue	xs:decimal	No	Underlying value to which the tax refers	Min value = 0 Decimal digits = 2
percentage	xs:decimal	For B2G only Yes	Deduction, withholding rate	Min value = 0 Decimal digits = 2
reason	xs:string	For B2G only Yes	Deduction, withholding description
taxAmount	xs:decimal	Yes	Tax amount	Min value = 0 Decimal digits = 2
Id	xs:byte	No	Line number
ReducesPayable	xs:boolean	No	Reduces the Payable amount	Default = False
taxTypeLabel	xs:string	No	Description of the service

Document summary

Field	Type	Required	Description	Valid values
totalNetValue	xs:decimal	Yes	Total net value	Min value = 0 Decimal digits = 2
totalVatAmount	xs:decimal	Yes	Total VAT amount	Min value = 0 Decimal digits = 2
totalWithheldAmount	xs:decimal	Yes	Total withholding taxes amount	Min value = 0 Decimal digits = 2
totalFeesAmount	xs:decimal	Yes	Total fees amount	Min value = 0 Decimal digits = 2
totalStampDutyamount	xs:decimal	Yes	Total digital transaction fee	Min value = 0 Decimal digits = 2
totalOtherTaxesAmount	xs:decimal	Yes	Total other taxes amount	Min value = 0 Decimal digits = 2
totalDeductionsAmount	xs:decimal	Yes	Total deductions amount	Min value = 0 Decimal digits = 2
totalGrossValue	xs:decimal	Yes	Total gross value	Min value = 0 Decimal digits = 2
incomeClassification	IncomeClassificationType	No	Income classification
expensesClassification	ExpensesClassificationType	No	Expenses classification

Remarks

Elements incomeClassification and expensesClassification contain the sums of all combinations of fields classificationType and classificationCategory that exist in the details of the invoice.
All tax summary fields contain the summary of corresponding taxes of the details of the invoice or in the taxesTotals element.
totalGrossValue = totalNetValue + totalVatAmount + totalFeesAmount + totalStampDutyamount + totalOtherTaxesAmount – totalWithheldAmount

Income classification
Element IncomeClassificationType which contains the income classification has the following structure:

Field	Type	Required	Description	Valid values
classificationType	xs: string	Yes	Classification type	Possible values of fields are described in the appendix
classificationCategory	xs: string	Yes	Classification category	Possible values of fields are described in the appendix
amount	xs:decimal	Yes	Amount	Min value = 0 Decimal digits = 2
id	xs:byte	No	Serial number of classification	Used for serial numbering (1,2,3… etc.) of the classifications of a row

Remarks

Due to sending documents through a Provider, it is not necessary to send a classification.
The id field is used for serial numbering (1,2,3…etc) of the designations within a line

Expenses classification
Element ExpensesClassificationType which contains the income classification has the following structure:

Field	Type	Required	Description	Valid values
ClassificationType	xs: string	Yes	Classification type	Possible values of fields are described in the appendix
classificationCategory	xs: string	Yes	Classification category	Possible values of fields are described in the appendix
amount	xs:decimal	Yes	Amount	Min value = 0 Decimal digits = 2
id	xs:byte	No	Serial number of classification	Used for serial numbering (1,2,3… etc.) of the classifications of a row

Remarks

Due to sending documents through a Provider, it is not necessary to send a classification.

Details
The issuer and the counterpart are elements of type PartyType.

Field	Type	Required	Description
API_Issuer	API_IssuerType	Yes	API_Issuer
API_Counterpart	API_CounterpartType	Yes	API_Counterpart
API_Additionals	API_AdditionalsType	Yes	API_Additionals

Issuer
Element API_IssuerType which contains the following structure:

Field	Type	Required	Valid values
IssuerName	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerProfession	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerTaxOffice	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerAddressStreet	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerAddressNumber	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerAddressPostalCode	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerAddressCity	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerAddressCountry	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerPhone	xs: string	No	Invoice fields described in «Document structure, examples and tools»
IssuerFax	xs: string	No	Invoice fields described in «Document structure, examples and tools»
IssuerEmail	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
IssuerWebSite	xs: string	No	Invoice fields described in «Document structure, examples and tools»
IssuerRegistryNumber	xs: string	No	Invoice fields described in «Document structure, examples and tools»
IssuerEmtyLine	xs: string	No	Invoice fields described in «Document structure, examples and tools»
IssuerEmtyLine2	xs: string	No	Invoice fields described in «Document structure, examples and tools»

Counterpart
Element API_ConterpartType which contains the following structure:

Field	Type	Required	Valid values
CounterpartCode	xs: string	No	Invoice fields described in «Document structure, examples and tools»
CounterpartName	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
CounterpartVat	xs: string	No	Used on demand only if invoiceType is 11.1 or 11.2
CounterpartProfession	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
CounterpartTaxOffice	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
CounterpartAddressStreet	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
CounterpartAddressNumber	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
CounterpartAddressPostalCode	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
CounterpartAddressCity	xs: string	Yes	Invoice fields described in «Document structure, examples and tools»
CounterpartAddressCountry	xs: string	No	Invoice fields described in «Document structure, examples and tools»
CounterpartPhone	xs: string	No	Invoice fields described in «Document structure, examples and tools»
CounterpartEmail	xs: string	No	Invoice fields described in «Document structure, examples and tools»

Additionals
Element API_AdditionalsType which contains the following structure:

Field	Type	Required	Valid values
DocumentLabel	xs: string	Yes	Invoice type description, described in «Document structure, examples and tools»
DocumentComments	xs: string	No	The comments of the invoice, described in «Document structure, examples and tools»
paymentMethodInvoiceLabel	xs: string	Yes	The description of the payment type, described in «Document structure, examples and tools»
Logo_ID	xs: string	No	Default ID = 1. Can be set on API Portal
DispatchPlaceFrom	xs: string	No	The dispatch origin place
DispatchPlaceTo	xs: string	No	The dispatch destination place
DispatchMethod	xs: string	No	Shipping method
docTime	xs: string	No	Time of issuance of document
b2g	xs:boolean	For B2G only Yes	Yes, no on whether it concerns a document payable to the government
buyerIdentifier	xs: string	For B2G only Yes	The contracting authority
contractReference	xs: string	For B2G only Yes	Registry Online Authorisation Reference Number
projectReference	xs: string	For B2G only Yes	Contract identifier

Responses

Data submission
When you use the submission service (sendinvoice.php / SendInvoices), you receive an SBZResponseDoc XML response. The
object contains a list of response elements, one for each entity submitted.

Field	Type	Description
Index	xs: int	Entity’s line number inside the submitted xml
invoiceUid	xs: string	Invoice identifier
invoiceMark	xs: long	Unique Invoice Registration Number
AuthenticationCode	xs: string	Signature
InvoiceUrl	xs: string	The url to get the invoice
myDATAUrl	xs: string	The link leading to the IAPR document
Errors	ErrorType	Errors list
units	xs: long	Units available for use
statusCode	xs: string	Status code

Remarks

The type of response (success or failure) is determined by the value of the statusCode field.
If successful, the statusCode field has value Success and the answer contains the corresponding values for the invoiceUid and invoiceMark fields for each entity submitted.
In case of failure, the statusCode field has a value corresponding to the type of error, and the response includes a list of ErrorType error data for each entity that failed to submit. All errors by entity are in the same category that characterizes the response.
Field invoiceUid is returned only when the submitted entity was invoice.
Field classificationMark is returned only when the submitted entity was classification.
The authenticationCode field returns if the submission was made through a provider
The cancellationMark field returns only if the request was for cancellation of a document
The invoiceMark field contains the mark of the submitted invoice in case of submitted invoices and the mark of the invoice to which the submitted markings related, in case of submitted markings
The qrUrl field returns only on submissions of document types 1.1 to 11.5

Data retrieval
When you call requesttransmitteddocs.php, SBZ forwards the call to AADE and returns the AADE response body as-is (typically XML RequestedProviderDoc with InvoiceProviderType entries). There is no local SBZ enrichment.

Field	Type	Required	Description
continuationToken	continuationTokenType	No	Partial retrieval element (if AADE returns it)
InvoiceProviderType	InvoiceProviderType	No	List of transmitted document entries (AADE structure)
issuerVAT	xs:string	Yes*	Document issuer VAT (*inside each InvoiceProviderType, when present)
invoiceProviderMark	xs:long	Yes*	Document MARK
invoiceUid	xs:string	Yes*	Document UID
authenticationCode	xs:string	Yes*	Provider authentication code

Remarks:

Retrieval covers documents of the issuer requested with issuerVAT, not documents issued “to you” by other issuers.
AADE parameters nextPartitionKey / nextRowKey are not forwarded by the SBZ call.
If AADE returns continuationToken, it may appear in the XML, but SBZ does not use it for a follow-up call yet.
